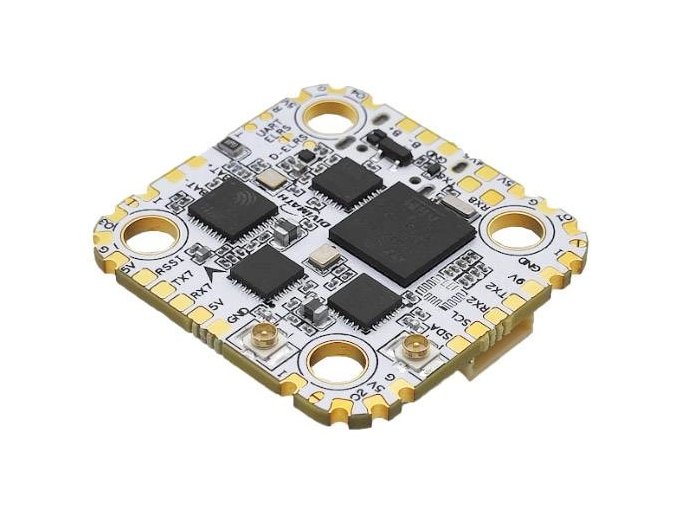

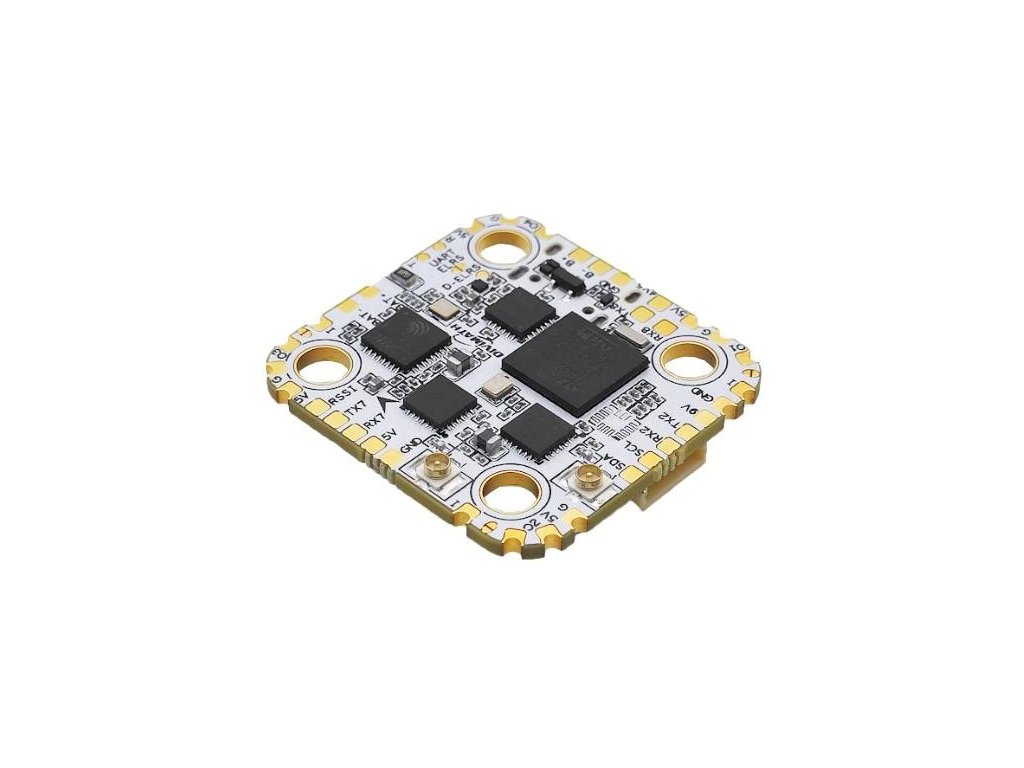

HDZero Halo FC
HDZero Halo FC
Popis
SPECIFIKACE
Flight Controller
|
CPU
|
STM32H743 (480MHz)
|
|
Gyro
|
MPU6000 or ICM42688
|
|
BEC output
|
DC 5V/4A
DC 9V/3A
DC 4.5V/0.5A
|
|
Black Box
|
16MB Flash memory
|
|
I2C Pads
|
Yes
|
|
UART Pads
|
TX2/RX2, TX7/RX7, TX8/RX8
|
|
ESC Telemetry
|
RX4
|
|
VTX MSP UART
|
TX5/RX5
|
|
DJI HDL
|
RX3
|
|
Buzzer Pads
|
Yes
|
|
LED Strip
|
Parallel or Serial
|
|
USB
|
Type-C
|
|
Analog OSD
|
No
|
|
FC Firmware
|
Betaflight: HDZERO_HALO
|
ELRS Receiver
|
Chip Set
|
ESP32 + 2x SX1280
|
|
FC UART
|
TX1/RX1
|
|
True Diversity RX
|
Yes
|
|
RF Frequency
|
2.4GHz
|
|
Max TX RF Power
|
10mW
|
|
Antenna Interface
|
2xU.FL
|
|
ELRS Firmware
|
HDZero Halo FC 2.4G Gemini RX
|
Dimensions
Power Supply 3S ~ 8S
Size 29x30.5mm with 20x20 M4 mounting holes
Dedicated sockets for ESC, and HDZero and other Digital VTXes

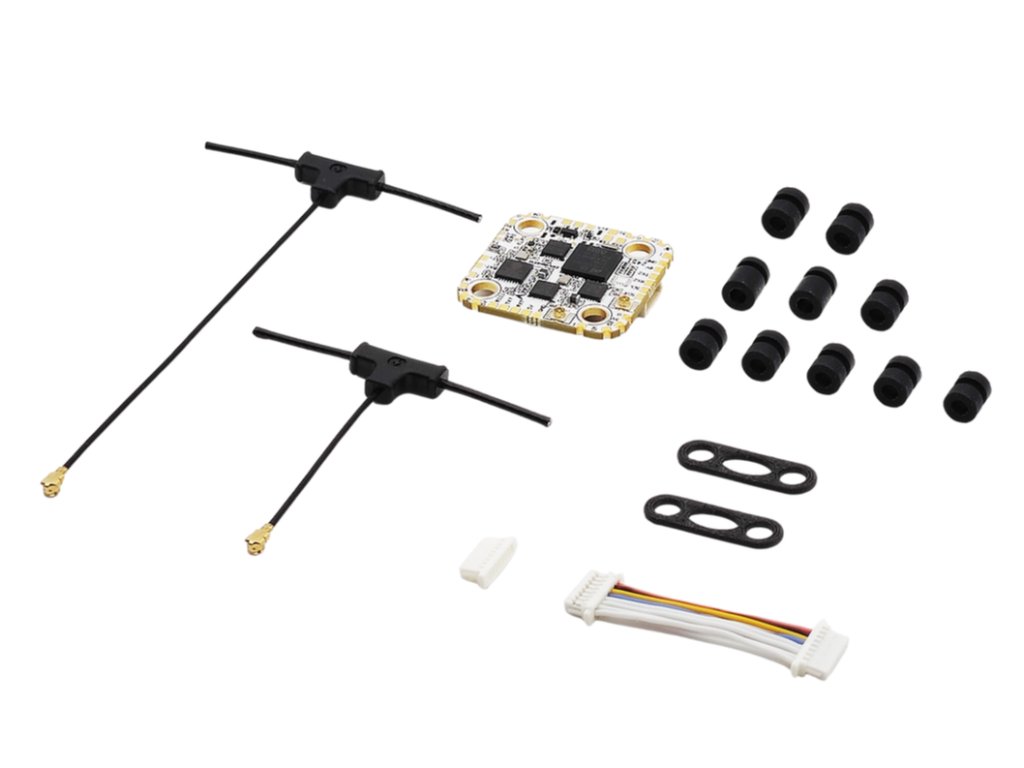

Obsah balení
- 1x HDZero Halo FC
- 5x Rubber Grommet(6.6mm)
- 5x Rubber Grommet(8.0mm)
- 1x ELRS T-sharp short antenna (40mm)
- 1x ELRS T-sharp long antenna (90mm)
- 2x ELRS Antenna Strain
- 1x ESC Cable (8-pin SH1.0, 30mm)
- 1x 8-pin SH1.0 connector
