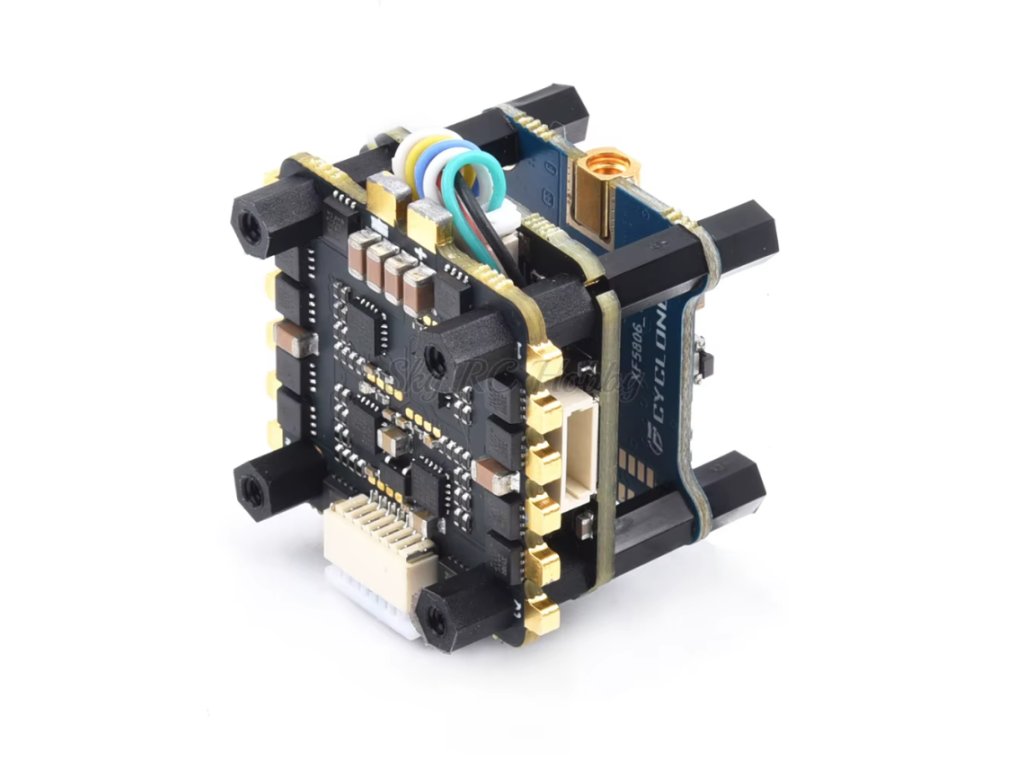

NOXE F4 tower

 F4 NOXE V3:

• Main control (MCU): STM32F411CEU6/100 MHz
• Input voltage: Input voltage: 2S-6S (7.4V-26V)
• 5V-BEC: 5V/2.5A ± 0.1V
• 10V-BEC: 10V/2A+0.1V
• Firmware (Firmware): Betaflight_4.3.0 JHEF 411.HEX
• Size: 27*27*5mm
• Mounting hole: 20*20*3mm
• Weight (weight): 4.3g

ESC:

• Support 2-5S voltage input, 4PWM input
• Compact size 31 * 31MM, ultra light 6.1G
• Support ONESHOT125, ONESHOT42, MULTISHOT,
  DSHOT150, DSHOT300, DSHOT600
• Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-5SLIPO
• Mounting holes: 20X20 MM, M2
• Target: J-H-30 JH-25
• Conventional: 25 amps
• Peak: 35 amps
• Size: 31 * 31MM (including power cushion)
• Mounting hole: 20 * 20MM

VTx

• Model: XF5806_V2
• Input voltage: 7-26V
• Onboard BEC output: 5V
• Channels: 40CH
• Transmitting: 25/100/200/400mW Switchable
• Video format: PAL/NTSC
• Control protocol: TBS Smartaudio V2
• Antenna connector: MMCX
• Wiring: pad
• Mounting hole: 20*20mm
