BetaFPV 5in1 Air FC
BetaFPV 5in1 Air FC
Popis
Specifikace FC
- Weight: 3.6g(5IN1 Version)
- Mounting Hole Size: 26mm x 26mm
- CPU*: STM32G473CEU6 (168MHz)
- Six-Axis: ICM42688P (SPI connection)
- Blackbox Memory: 16MB
- Sensor: Voltage&Current
- 5V BEC*: 5V 3A
- USB Port: SH1.0 4-Pin
- Built-in ESC with 5A continuous
- RX: Serial ELRS 2.4G (V3.4.3)
- 5IN1 Version: FC+ESC+OSD+VTX+RX
Specifikace ESC
- Input Voltage: 1S
- FC Firmware Version: Betaflight_4.5.0_BETAFPVG473
- ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
- Signal Support: D-shot300, D-shot600
Specifikace VTx
- Output Power: 25/100/200/400/PIT
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.0
- Modulation Type: FM
- Frequency Control: PLL
- All Harmonic: Max -50dBm
- Frequency Stability: ±100KHz (Typ.)
- Frequency Precision: ±200KHz (Typ.)
- Channel Carrier Error: ±1.5dB
- Antenna Port: 50 Ω
- Operating Temperature: -10℃~+80℃
Diagram

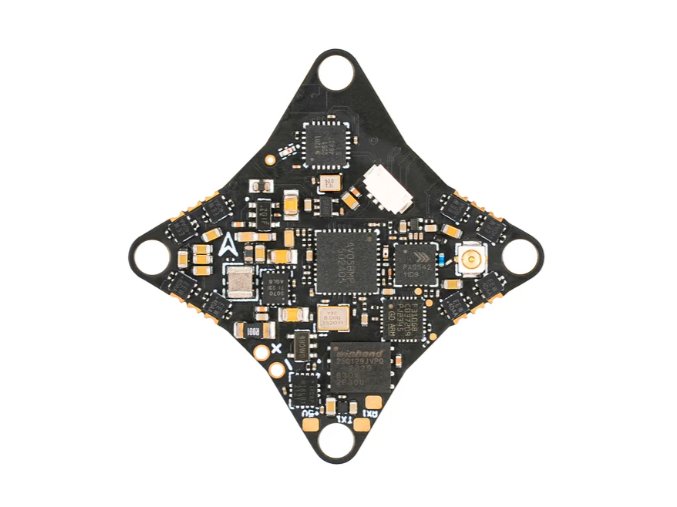

Below is the diagram for the Air Brushless Flight Controller (5IN1 Version).
4IN1&5IN1
Choose this higher integration Air Brushless Flight Controller, for an ultra-light 1S whoop installation, tailored to meet the needs of discerning pilots. It is default integrated onboard 25-400mW VTX, the 5IN1 Version that integrates FC+ESC+OSD+VTX+RX goes a step further by integrating the Serial ELRS 2.4G RX, streamlining installation to save space and reduce weight, and enhancing convenience for VTX and FC adjustments. The 4IN1 Version removes the RX port for added versatility, providing pilots with more external RX options.
Serial ELRS 2.4G RX
Serial ELRS 2.4G RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board. So the Serial ELRS 2.4G RX is available to support upgrading to ELRS V3.0 with no need to flash Betaflight flight controller firmware. Enter binding status by power on/off three times.
- Plugin and unplug the flight controller three times;
- Make sure the RX LED is doing a quick double blink, which indicates the receiver is in bind mode;
- Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse;
- If the receiver has a solid light, it's bound.
The Serial ELRS 2.4G RX can be updated via Wi-Fi or Betaflight serial passthrough. Here is the way to update the Serial ELRS 2.4G RX firmware through passthrough.
- Plug in your FC to your computer, but do NOT connect to betaflight configurator;
- Choose target "BETAFPV 2.4GHz AIO RX";
- Flash using the BetaflightPassthrough option in ExpressLRS Configurator.

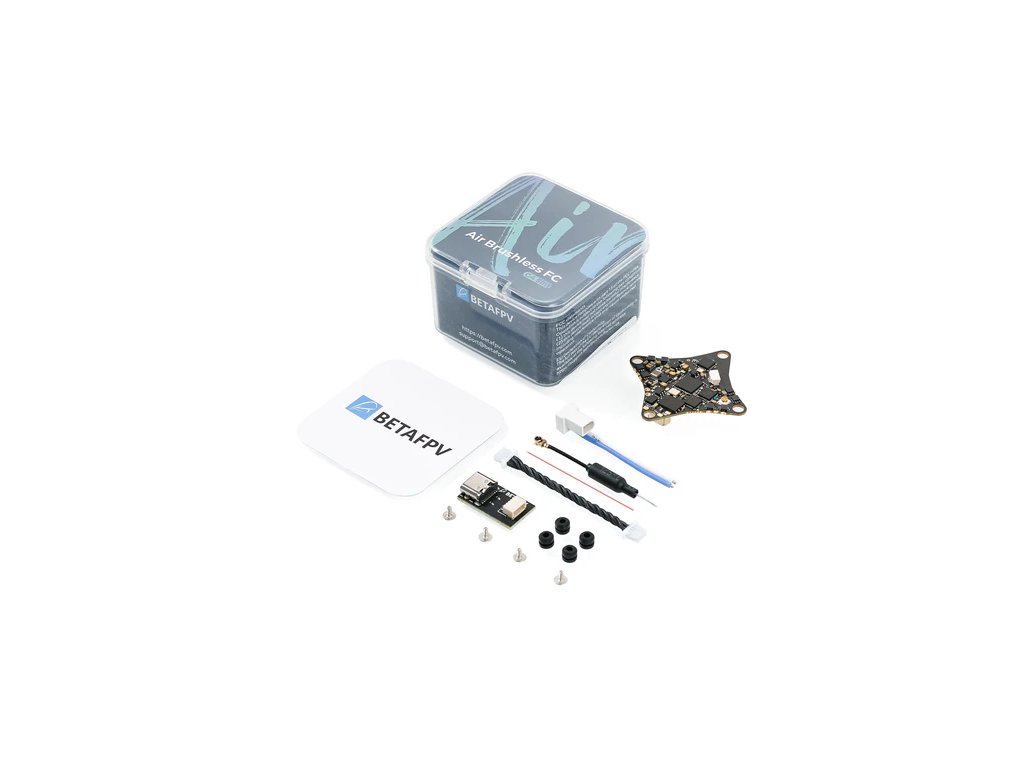

obsah balení
- 1 * Air Brushless Flight Controller
- 1 * 2.4g Antenna (Only 5IN1 Version)
- 1 * Type-C to SH1.0 Adapter
- 1 * SH1.0 4Pin Adapter Cable
- 1 * 5.8g VTX Antenna
- 1 * BT2.0 U Whoop Cable Pigtail | 40mm
- 4 * M1.4*4 Self-tapping Screws
- 4 * Shock Absorbing Ball
