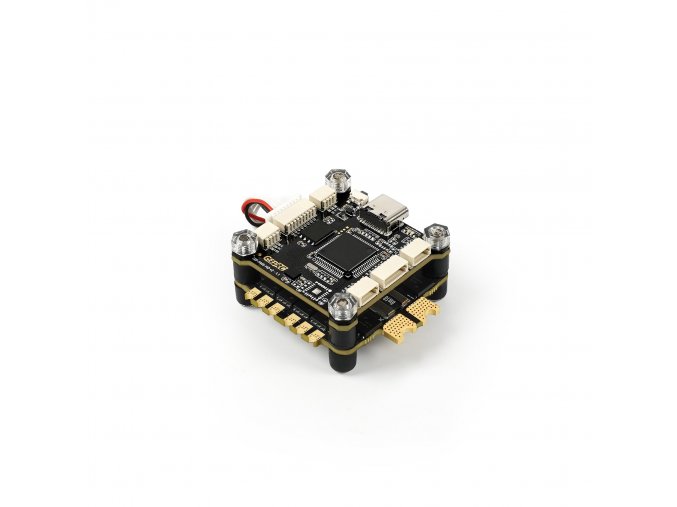

GEPRC Taker F405 BLS 50A Stack

Specifikace

GEP-F405-HD v2 Flight Controller

• MCU: STM32F405
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugging into DJI Air Unit
• Black Box: 16M onboard
• USB Connector: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V,9V dual BEC
• Firmware Target: GEPRCF405
• Size: 36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage: 3-6S LiPo
• UART: 6
• Power Filter: Integrated LC filter
• Weight: 7.7g

GEP-BLS50A-4IN1 ESC

• Input Voltage: 3-6S Lipo
• Galvanometer: Support
• Continuous Current: 50A
• Burst Current: 55A（5s）
• Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
• Size: 42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
• Weight:13.7g
• Target: G_H_30

obsah balení

1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
