Mamba F722APP MK4 MPU F55

• 30.5 x 30.5mm Mounting Pattern
• 128M Flash Memory Blackbox
• 3~6S Lipo (12.6~25.2V) Input
• MAMBA MK4 F722 APP FC
• F55 55A 128K ESC
• ICM42688P GYRO
• 6 Uarts
• Buzzer
• OSD

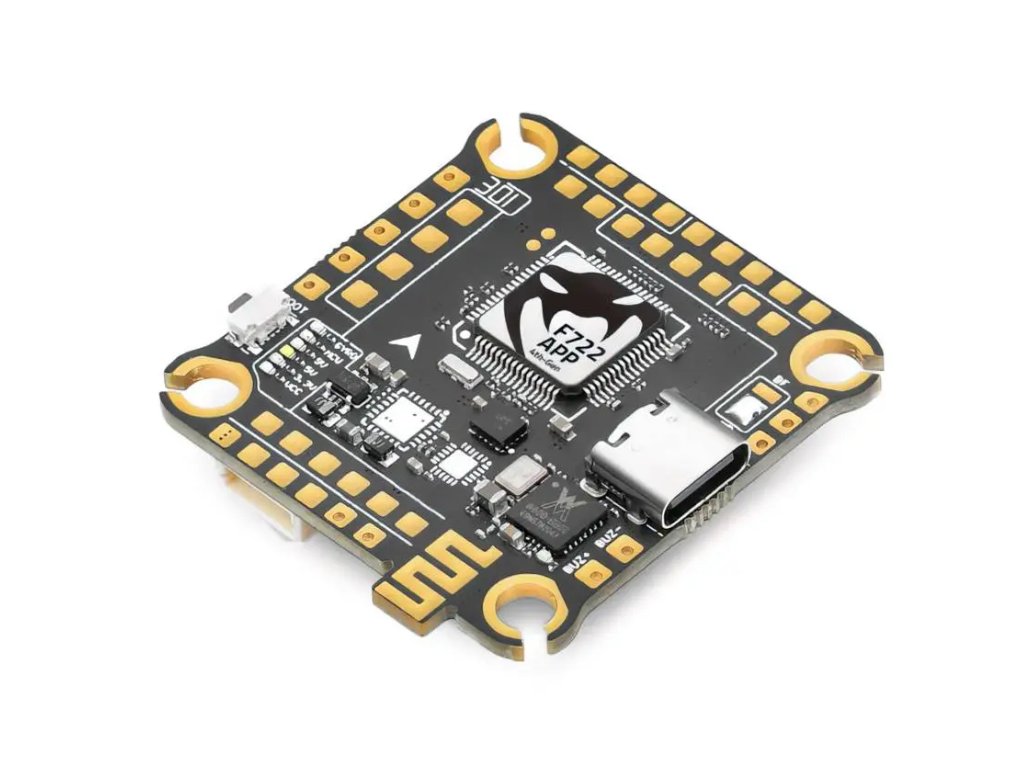

MAMBA MK4 APP FC

• Receiver: TBS/SBUS/|IBUS/DSM
• Mounting: 30.5x 30.5mm/M3
• Receiver Protection: Yes
• Blackbox: 16M Memory
• Size: 38.0x40.5x8mm
• WIFI: SpeedyBee APP
• Frequency: 216MHz
• Software: Betaflight
• BEC Protection: Yes
• TVS Protection: Yes
• AIR UNIT Port: Yes
• MCU: STM32F722
• Gyro: ICM42688P
• ESC Signal: 8 Set
• Buzzer Pad: Yes
• VTX Switch: Yes
• OSD: AT 7456E
• BEC 3.3V: 0.5A
• CURR Pad: Yes
• Input: 6S Lipo
• MB LED: Yes
• Weight: 10g
• BF LED: Yes
• Uarts: 6 Set
• BEC 9V: 3A
• BEC 5: 3A
• F.Port: Yes
• 12C: Yes

55A 128K ESC

• Target：BLHeli_32 MAMBA F55_128K
• Input Voltage: 3~6S Lipo 12.6-25.2V
• Mounting Pattern: 30.5mm/M3
• Protocol: Dshot300/600/1200
• Continuous Current: 55A×4
• Burst Current: 65A (10S)
• BLHeli: BLHeli_Suite32
• TVS Protection: Yes
• PWM:24~128K
• BEC: No

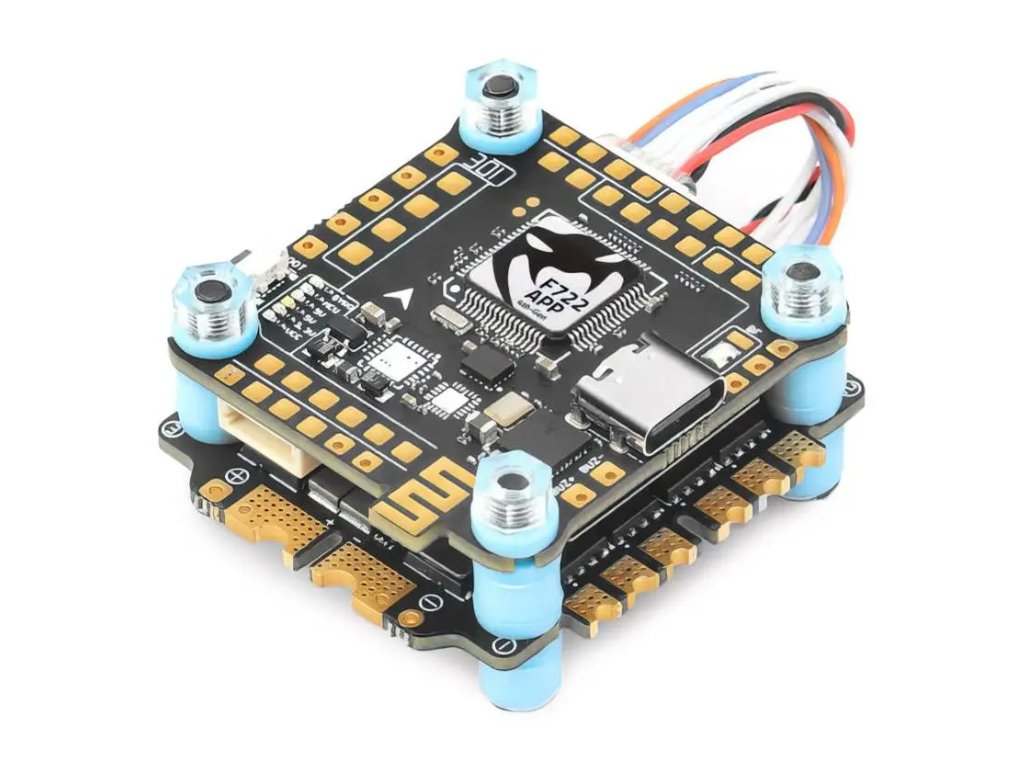

• 1x Diatone Mamba Stack - MK4 F722 APP FC + 55A 3-6S BHeli_32 128K ESC
• 5x M3 ESC Isolation Dampers
• 5x M3 Silicone Dampers
• 1x 6-Pin Air Unit Cable
• 2x 8-Pin Cable
