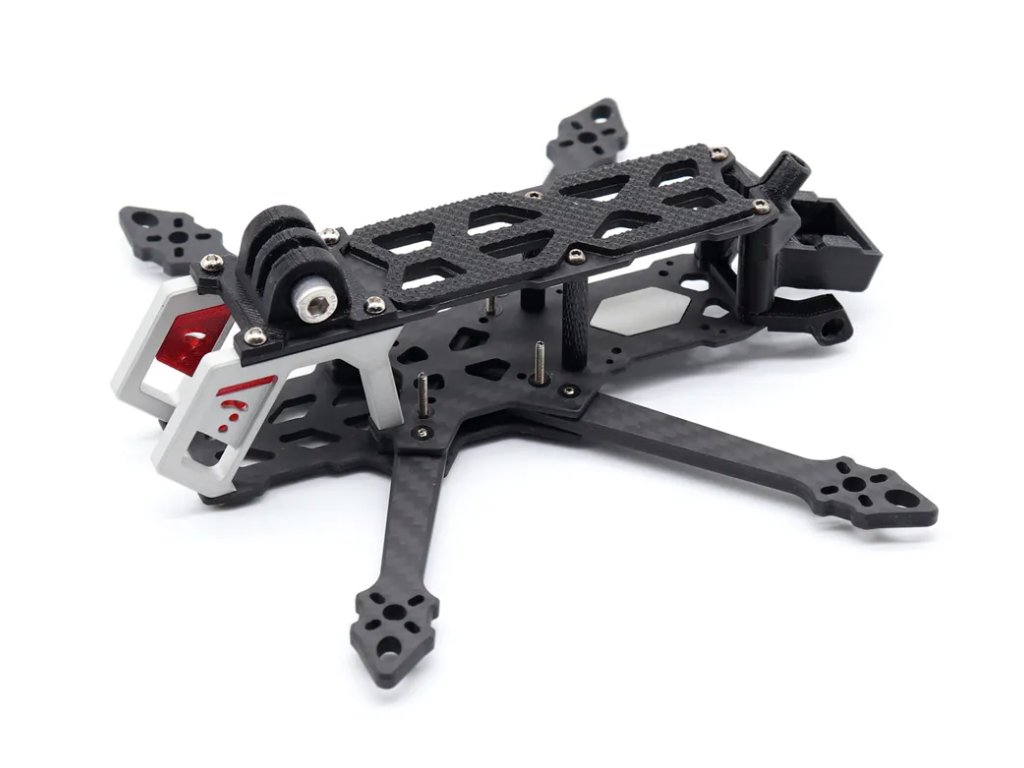

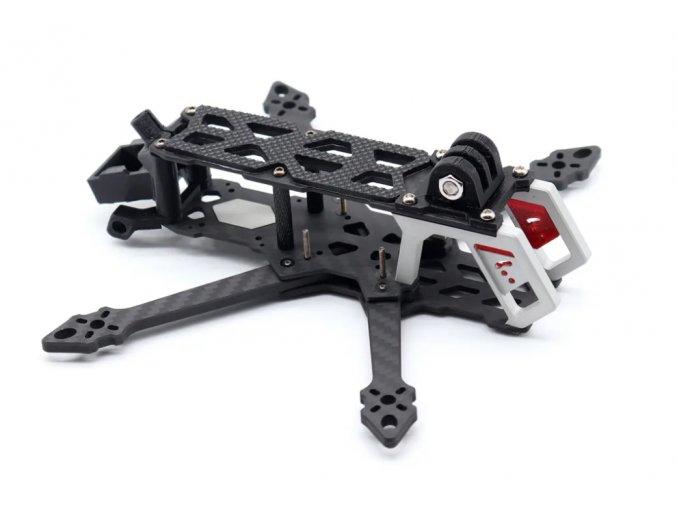

Model: CLOUD-160

Wheelbase size: 160mm

Top plate thickness: 2mm

Bottom plate thickness: 2mm

Arm thickness: 4mm

Flight control installation hole position: 20mm X 20mm/25.5 mm x 25.5 mm

Flight control installation height: 25mm

Image transmission installation hole position: 20mm X 20mm/25.5 mm x25.5 mm

Motor installation hole spacing: 9x9, 12x12mm

Camera installation size: 20mm X 20mm

Suitable blade size: 3.5 inch spiral blade

Size: 195mm X 158 mm X 37 mm

Weight: 81g (including 3D printout)

Obsah balení:

1 x upper plate 2.0mm

1 x front bottom plate 2.0mm

1 x rear base plate 2.0mm

2 x front boom 4.0mm

2 x rear boom 4.0mm

4 x mesh aluminum column M2.5x25

12 x round head M2.5x5 screw

4 x round head M2.5x8 screw

4 x round head M2.5x12 screws

4 x round head M2x9 screws

4 x round head M2x18 screws

8 x rivet nut M2 (already pressed)

2 x CNC front aluminum parts

1 x CNC image transmission heat sink aluminum parts

1 x Camera Shock Absorbing 3D Print Left

1 x Camera Shock Absorbing 3D Print Right

1 x 3D printing of image transmission antenna installation

1 x GPS installation 3D printout

1 x 3D printed installation of receiver T-shaped antenna

1 x GPRO installation 3D printout (with screws, nuts, screwdriver)

1 x battery rolling strip

1 x Battery anti slip pad

4 x Arm EVA Foot Mats

1 x Installation manual
