Mamba TOKA 2306.5 1770/2770KV

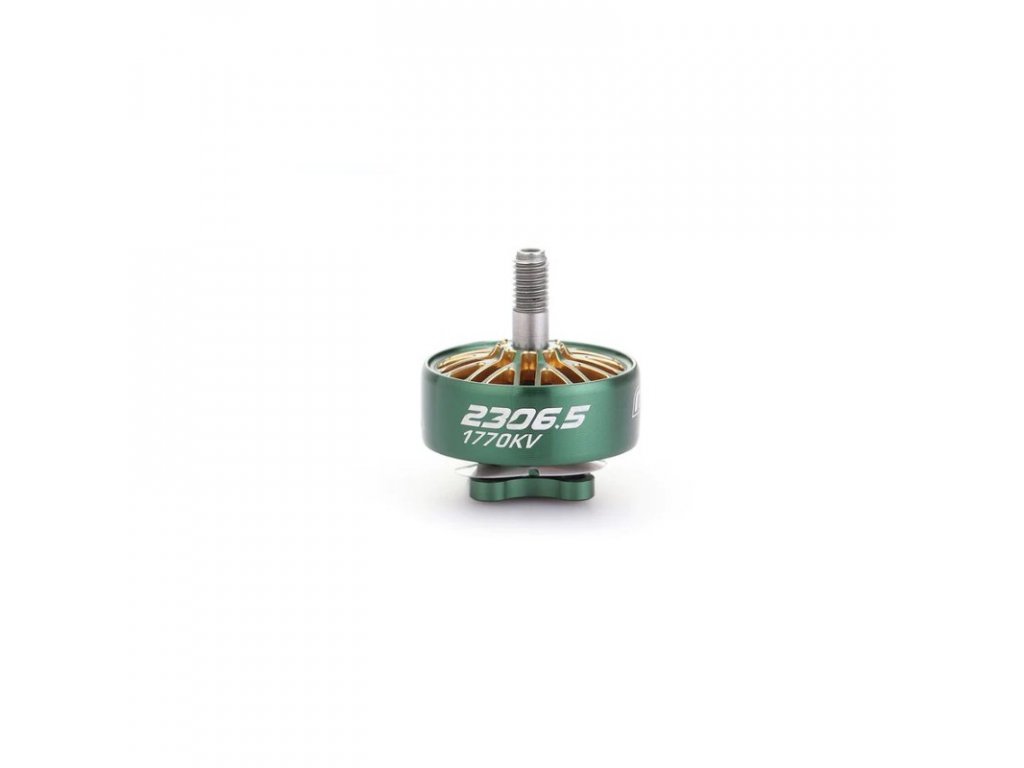

MAMBA TOKA 2306.5 1770KV MOTOR

Motor KV：1770KV
Overall Dimension:Φ29.8×33.2mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop: 5 inch
Bearing：681ZZ 9*4*4mm
Shaft Diameter:4.0mm
Lead Wire Size：20AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Magnet：N52H
Stator Diamter：23mm
Stator Height:6.5mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 39.12A
ldle Current：1A
Maximum Power: 938.97W
Internal Resistance：65mΩ

MAMBA TOKA 2306.5 2770KV MOTOR

 Motor KV：2770KV
Overall Dimension: Φ29.8×33.2mm
prop mounting shaft diameter: 5mm
Installation hole position: 16×16mm，M3
Prop: 5 inch
Bearing: 681ZZ 9*4*4mm
Shaft Diameter: 4.0mm
Lead Wire Size: 20AWG×190mm
slots/poles: 12N14P
Magnet Wire: 240℃ Enameled Wire
Magnet： N52H
Stator Diameter: 23mm
Stator height: 6.5mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 52.62A
ldle Current: 2A
Maximum Power: 847.10W
Internal Resistance: 40mΩ
