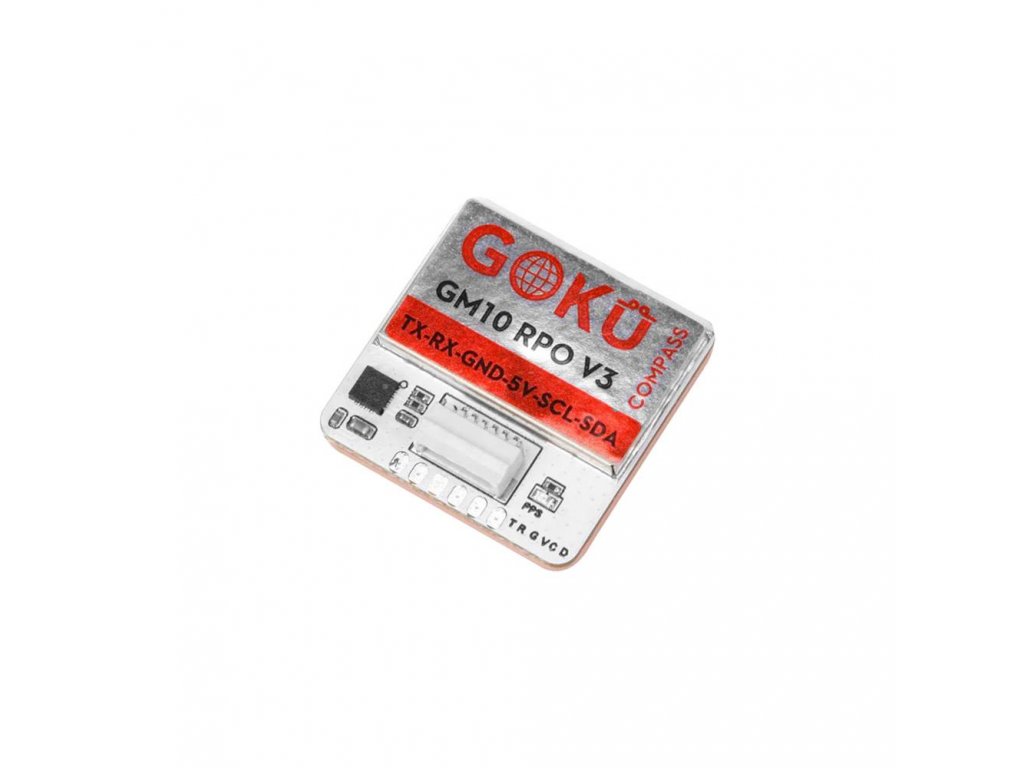

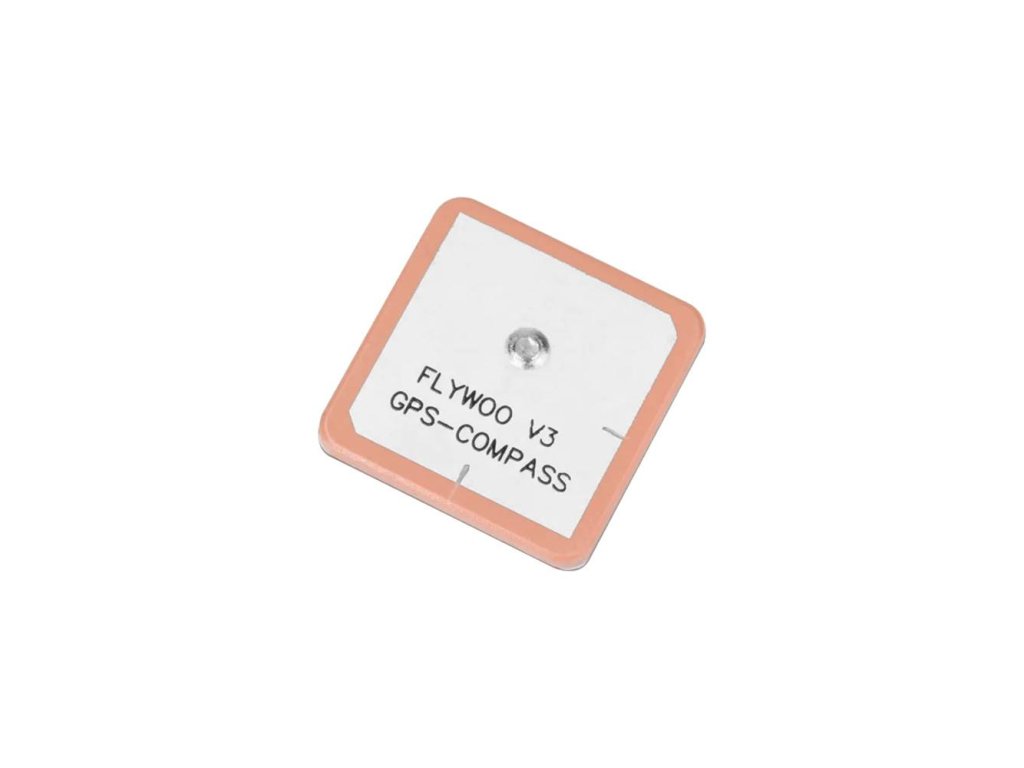

Goku GM10 Pro V3 GPS

• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Connector: 1.00mm spacing between the 6pins patch seat
• Chipset: M10050(Tenth Generation Chip)
• Default Protocol: GPS, Galileo, BeiDou
• Channels: 72 Searching Channel

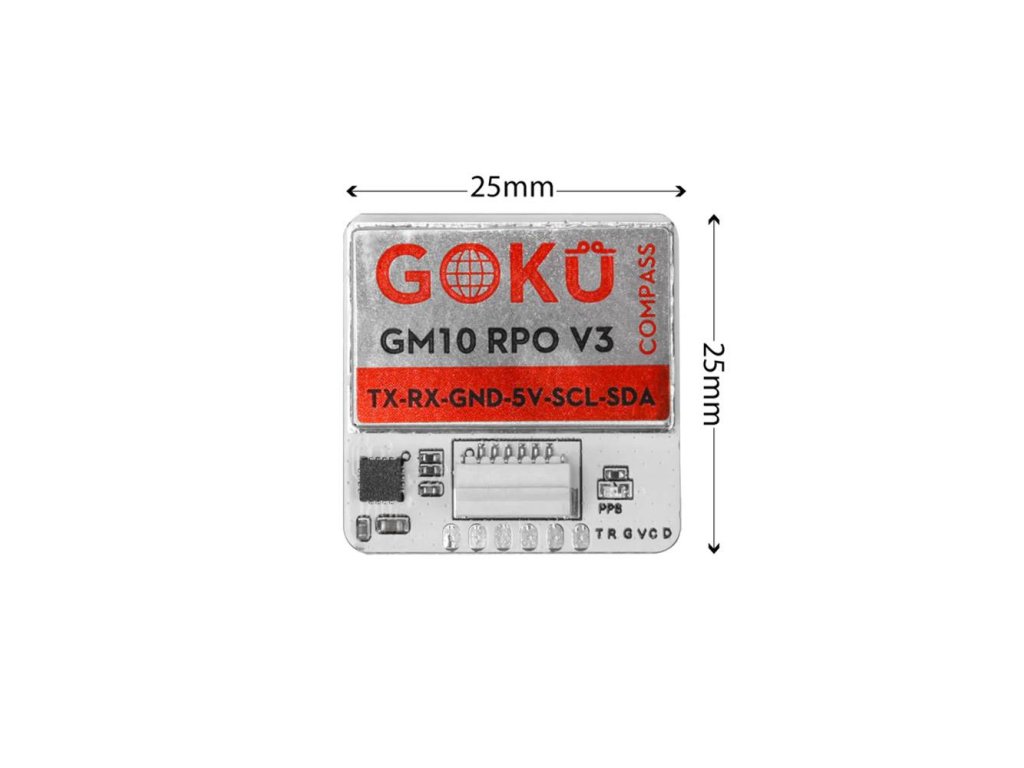

• Rozměry: 25mm x 25mm x 6mm

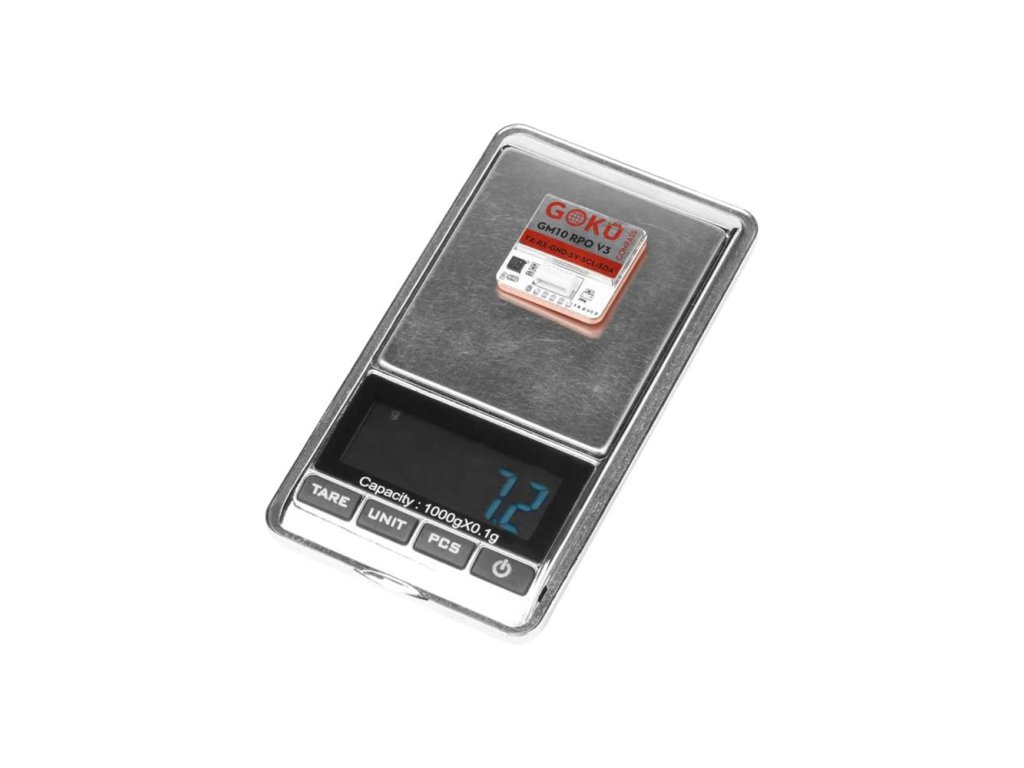

• Váha: 7.3g
• Reacquisition: -160dBm
• Tracking: -162dBm

DATA AND UPDATE RATE

• Support Rate: 4800bps to 921600bps,Default 115200bps
• Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Data Level: TTL or RS-232, Default TTL level
  Output frequency: 1Hz-10Hz，Default 10Hz

OPERATIONAL LIMITS

• Acceleration: Less than 4g
• Altitude: 50,000m Max
• Velocity: 500m/s Max



POWER CONSUMPTION

• Operating temp:　-40 °C ~ +85°C
• Storage Temp: -40°C ~ +105°C
• VCC: DC Voltage：5V



INDICATOR

• PPS LED: yellow .PPS LED is not bright when GPS is not fixed, flashing when fixed

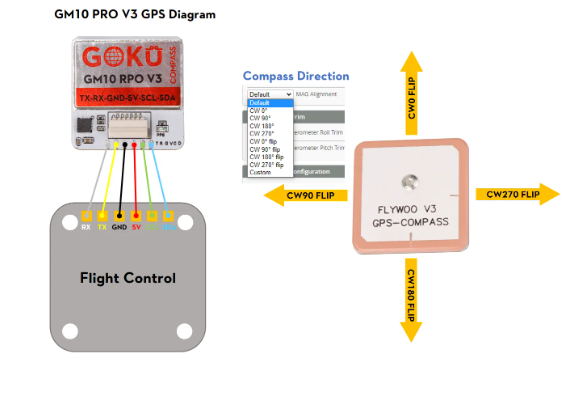

• The Module’s Pins: TX RX GND 5V SCL SDA

IMPORTANT NOTES

• The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols.


• 1x Flywoo GOKU GM10 Pro V3 GPS Module w/ Compass
• 1x 150mm Cable
• 1x Copper Foil
