Radiomaster RP3 ELRS RX


  • 1 z 3


Přijímač Radiomaster RP3 ELRS

Dostupnost Vyprodáno
609 Kč
Kategorie Přijímače
Položka byla vyprodána...


Specifikace

  • Item: RP3 Diversity Receiver
  • Type: ISM
  • MCU: ESP8285
  • RF Chip: SX1281
  • Telemetry RF power: Max 100mw
  • Antenna: 65mm 2.4ghz T Antenna x 2
  • Frequency Range: 2.404 - 2.479 Ghz
  • Maximum receive refresh rate: 500Hz / F1000Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: 5v
  • Weight: 4.6g (Including two antenna)
  • Dimension: 22mm*13mm*4mm
  • Firmware Version: ExpressLRS v3.0 pre-installed
  • FW Target: RadioMaster RP3 Diversity 2400 RX
  • Bus interface: CRSF

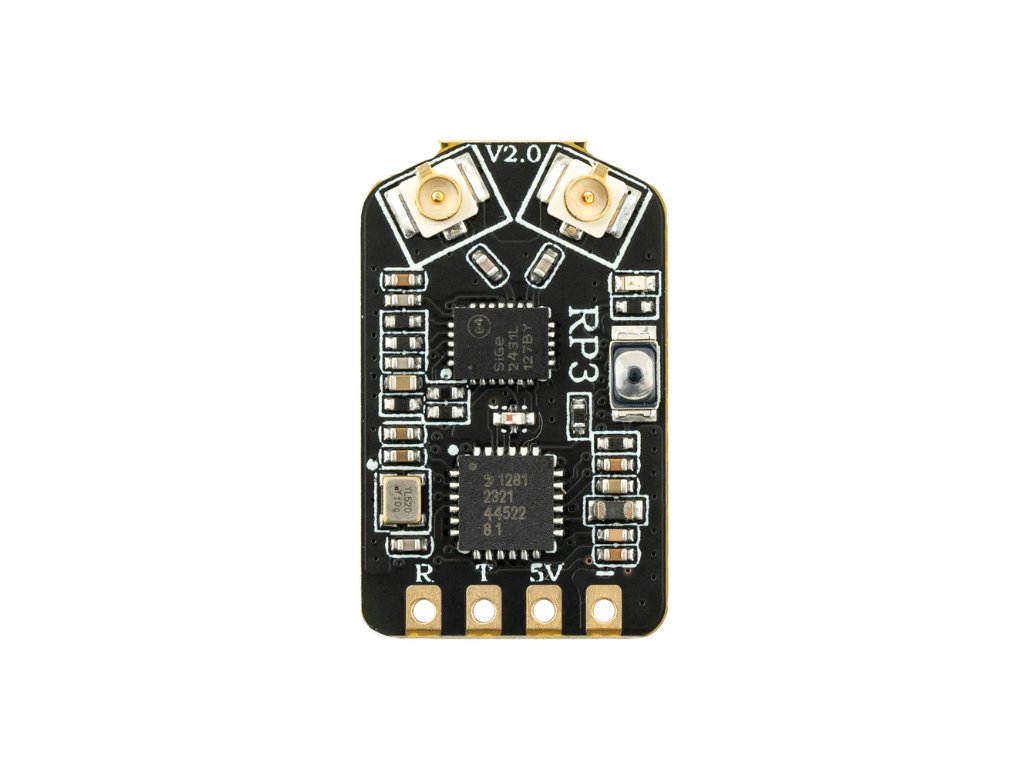

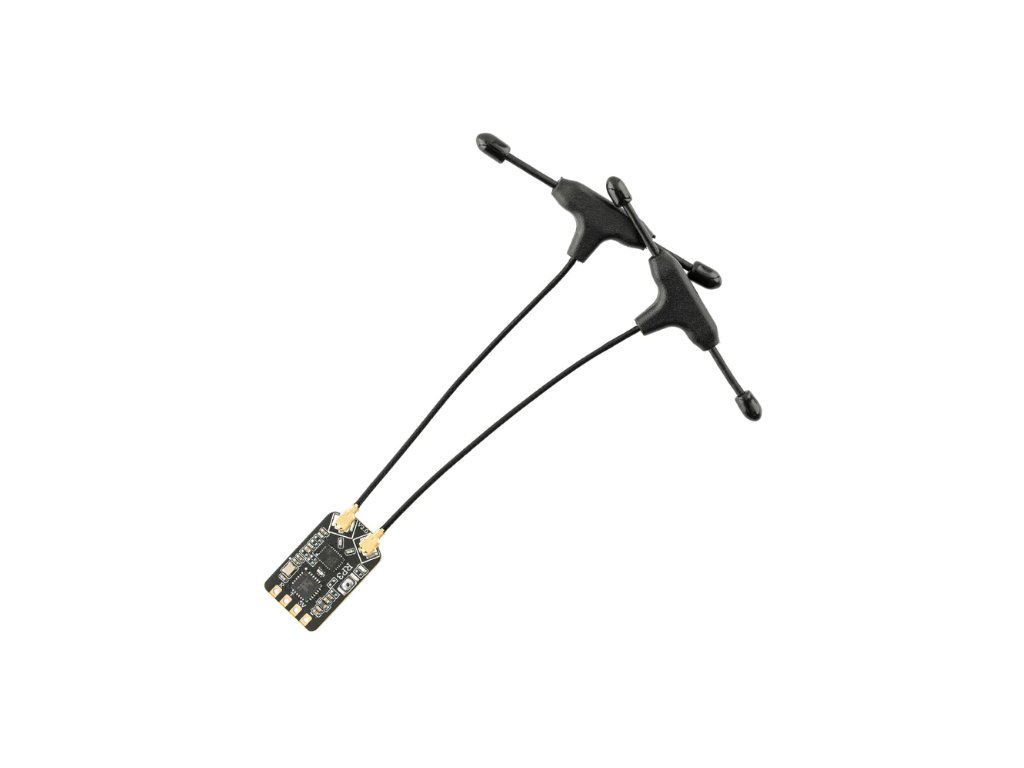

RP3 ExpressLRS 2.4ghz Nano Receiver

TCXO (temperature compensated crystal oscillator)

The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.

RP3 ExpressLRS 2.4ghz Nano ReceiverRP3 ExpressLRS 2.4ghz Nano ReceiverRP3 ExpressLRS 2.4ghz Nano Receiver

Size

    RP3 ExpressLRS 2.4ghz Nano Receiver
    RP3 ExpressLRS 2.4ghz Nano Receiver

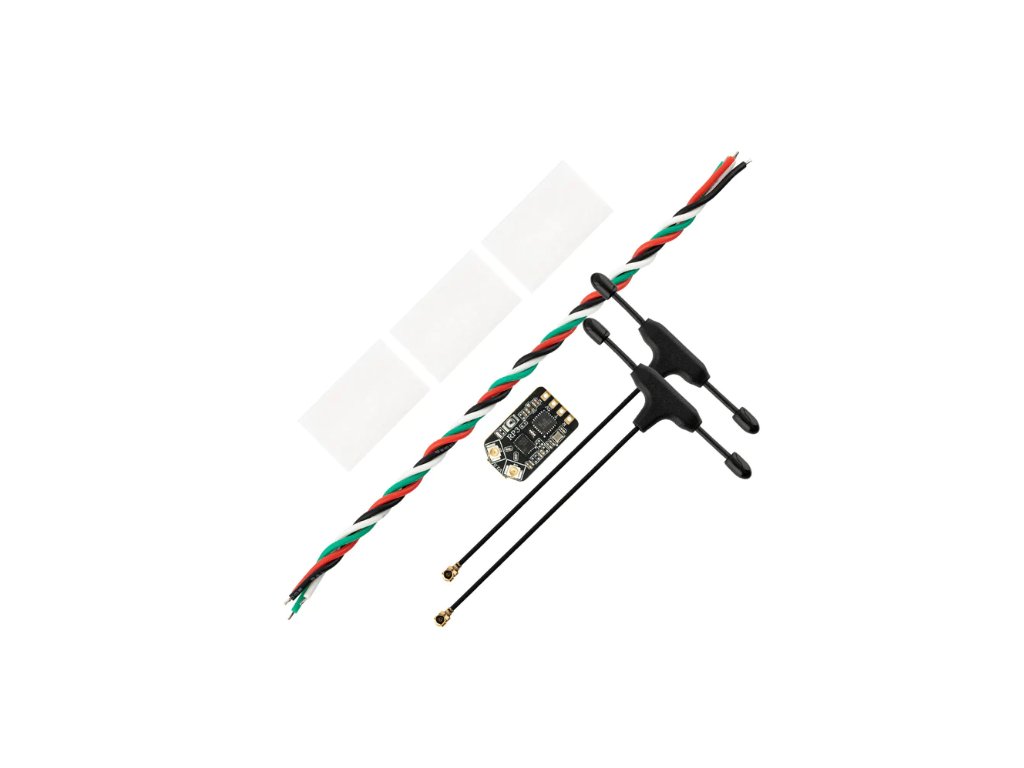

    Package Includes

    • 1 * RP3 ExpressLRS 2.4ghz Nano Receiver
    • 2 * 65mm UFL 2.4Ghz T Antenna
    • 1 * User Manual
    • 1 * CRSF wire
