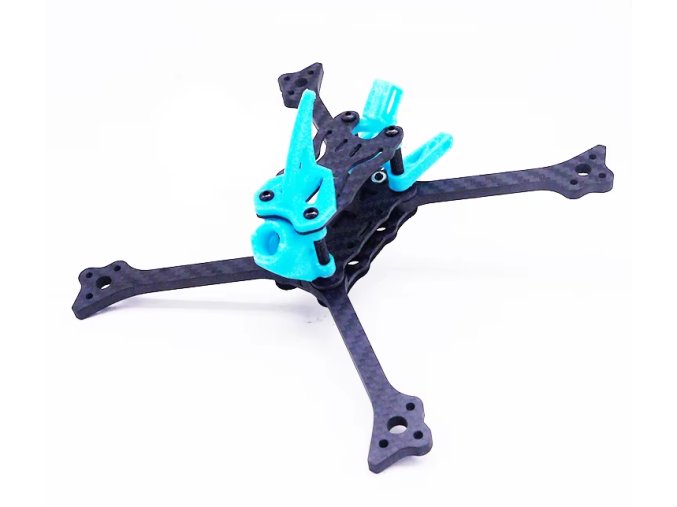

533 Plus

SPECIFIKACE

1. Wheelbase: 190mm

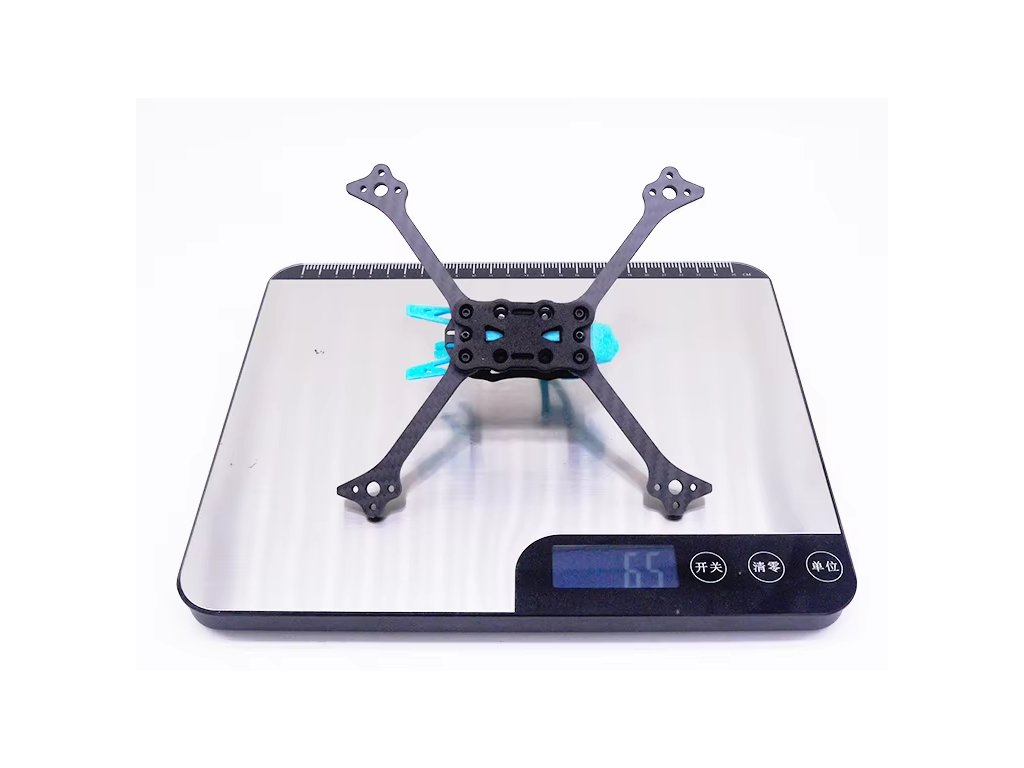

2. Weight: 65G

3. Thickness: arm 5.0mm, arm fasteners 3.0mm, other 2.0mm

4. Blade: 5.0 inch Propeller

5. Flight control hole spacing: 20 * 20mm (M3)

6. Top plate installation hole position: 20 * 20mm (M2)

7. Camera installation width: 14mm (camera angle is about 50 degrees)

8. Motor installation hole position: 16 * 16mm (M3)

9. Structure: X-shaped split

10. Aluminum column height: M3 * 25mm

11. Distance between front and rear aluminum columns: approximately 45mm

12. Adapt to snail, nebula, aurora, vista sky end, etc., 915 antenna

13.3D printout: camera base * 1, shark fin * 1, 915 antenna base * 1, arm fasteners * 2, antenna mounting base * 1 (antenna shell size does not exceed 9 * 13mm, micro lollipop antenna recommended)
