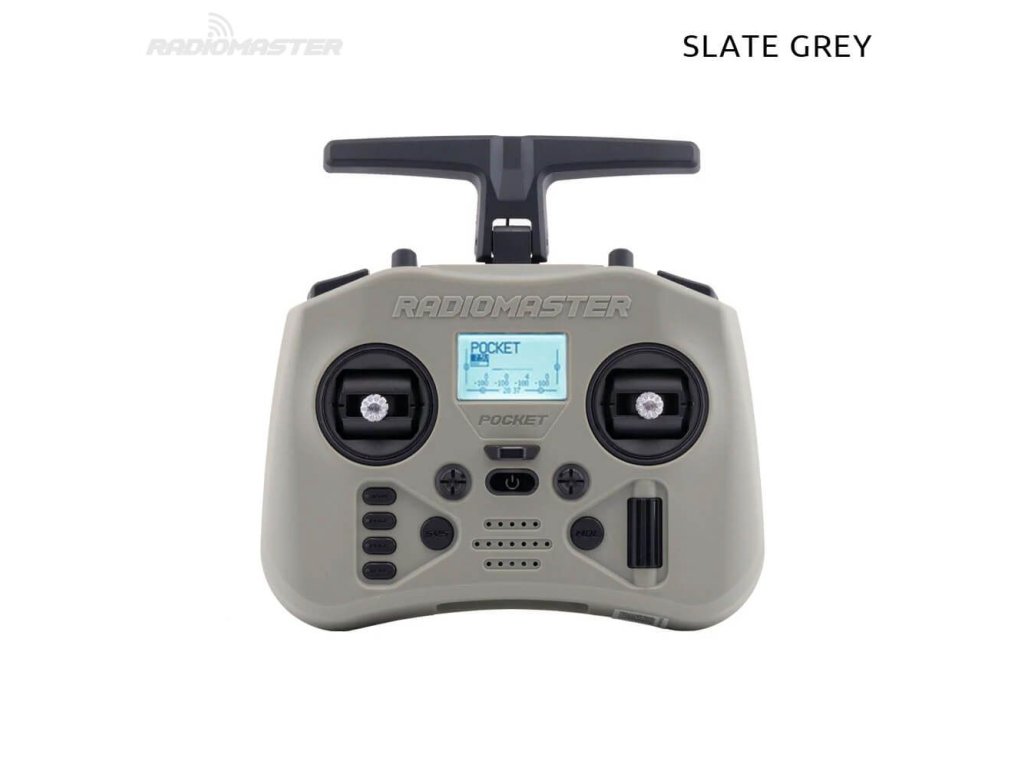

RadioMaster Pocket

Available in ExpressLRS and MPM CC2500 versions
Preinstalled with EdgeTX firmware
18650 Batteries, all the power you need for hours of fun (Batteries not included)
Portable and lightweight design with removable stick ends and foldable antenna
Features hall effect gimbals as standard for smooth cantering & precise response
Built-in LED lights help visualize your switch inputs
Backlit LCD Screen offering a perfect balance of size and functionality
Trim buttons for easy channel trimming
External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style

Specifikace

Rozměry: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
Hmotnost: 288 grams
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
Supported protocols: Module dependent
Operational voltage: 6.6-8.4v DC
Operating system: EdgeTX
Control channels: Maximum 16 (Receiver dependent)
Display: 128*64 Monochrome LCD
Battery: 2pcs 18650 batteries (nejsou součástí balení)
Charging: Built in USB-C QC3 Charging
Upgradable Firmware: Via USB or the included SD card
Gimbal: Hall-effect
Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Pocket Radio Controller (M2)

A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.
