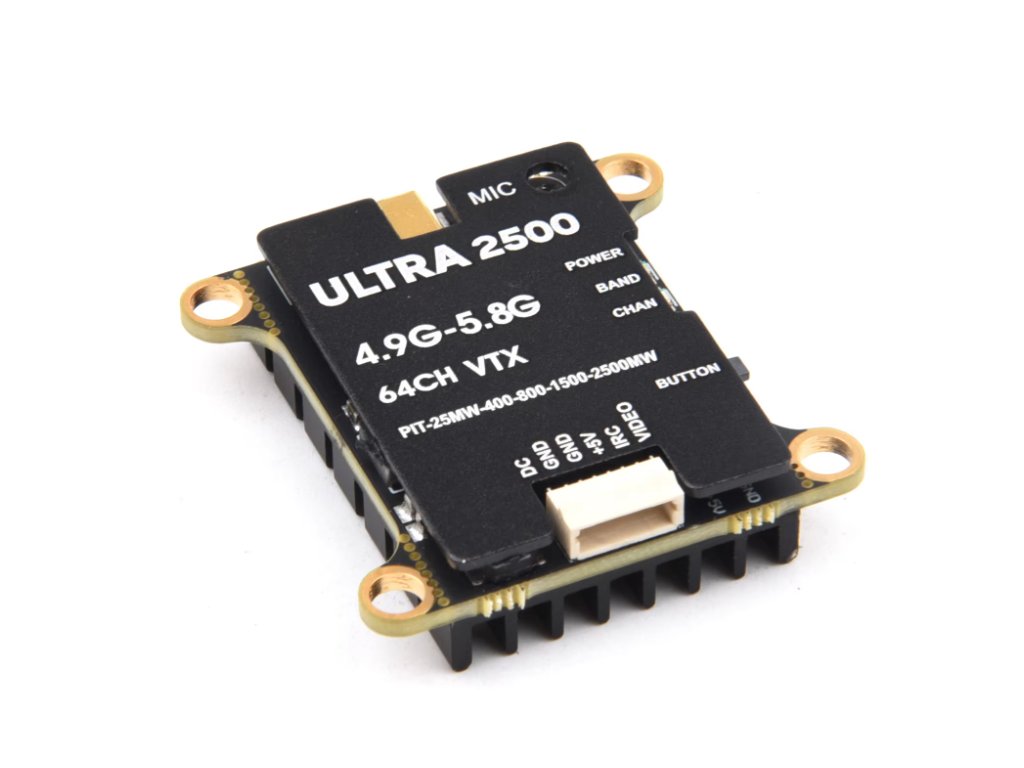

Ultra 2500 4.9-5.8g VTx
Popis
SPECIFIKACE
- Model: Ultra2500 VTX 4.9G-5.8G 2.5W
- Input voltage: DC 7-36V(2-8S Battery)
- Output: 5V@600mA(Power 5V to camera)
- Input impedance: 75Ω
- Protocol: IRC Tramp
- Antenna connector: MMCX connector
- Cable connector: GH1.25-6P connector
- Output power: 25mW/400mW/800mW/1500mW/2500mW/Pit mode
- Frequency tables: 64 CH
- Video format: PAL / NTSC
- Microphone: Built in microphone
- Size: 36.5mmx36.5mmx12mm
- Weight: 15g(without cable)
- Mounting holes: 30.5mmX30.5mm(M3)
Support IRC Tramp Protocol
Ultra2500 VTX supports the IRC TRAMP protocol and the modification of
video transmission parameters through the remote control, including
frequency, working power and so on.
NOTE: For BetaFlight flight controller firmware above BetaFlight 4.1.0,you need
upload a VTX Table to the flight controller before using the remote control to
modify the video transmitter parameters normally.
ULTRA2500_VTX_25W.json
For the use of the video transmitter table, please refer to this article
“How to Setup Betaflight VTX Table – SmartAudio Tramp VTX Control"
Obsah balení

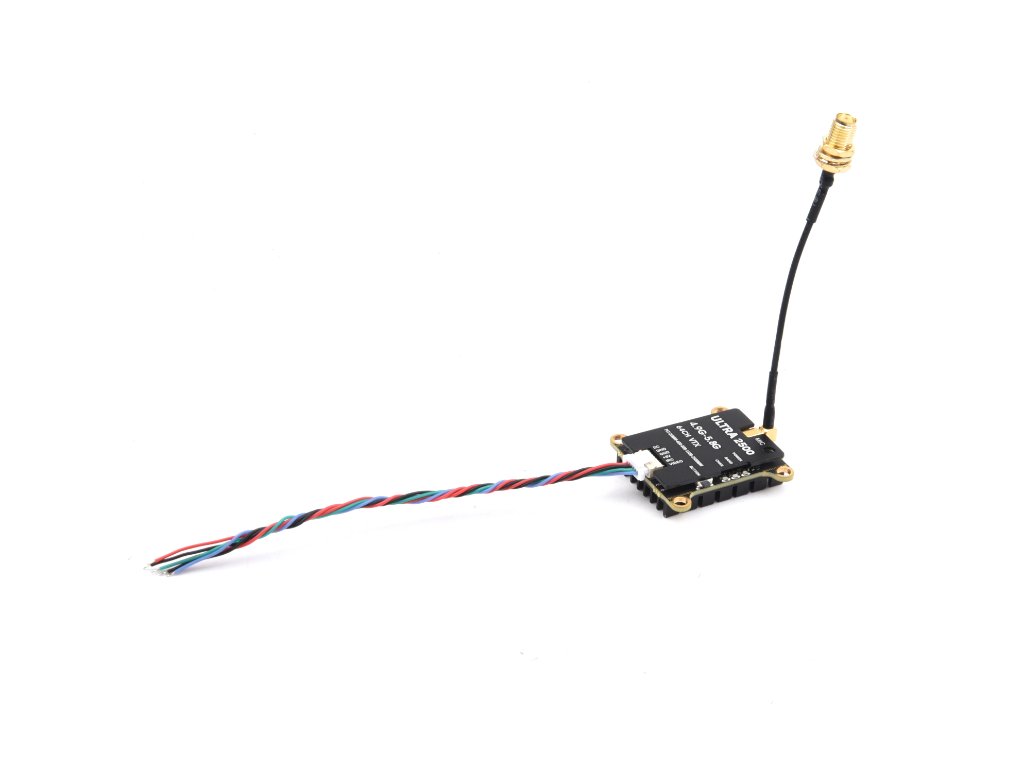

1 x Ultra2500 VTX 2.5W
1 x MMCX connector to SMA connector 82cm
1 x GH 1.25-6P connector cables 150mm
